General Information
SoftEars Turii
Impedance: 25 ohm @ 1KHZ (± 15% 6)
Sensitivity: 117DB / VRMS @ 1 KHZ
Effective frequency response: 20 20KHZ (IEC60318 4)
Frequency response range: 8 42KHZ (1/4 inch free field microphone, 3DB)
THD: <0.1%@1KHZ
Plug: 3.5mm Line type

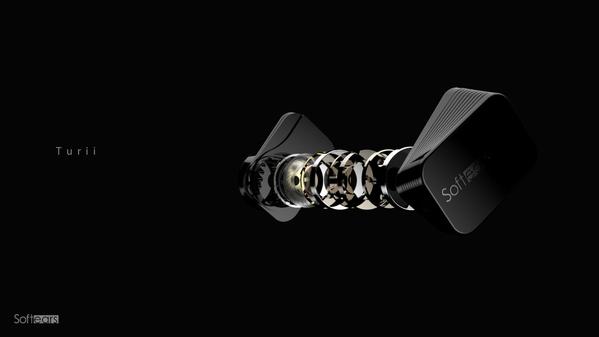

The magnetic circuit design of Turii is often used in speakers. The built-in magnetic column opts high permeability material processed by CNC to form a structure that can give more magnetic density to the air gap position. The magnets used in the Turii unit are neodymium magnets with a natural magnetic density of 1.6T. This may sound like a tesla unit to many people, but the difference is, the bearings used to support the suspension material are not integrated with the magnetic circuit. Instead, they are made of copper, which is basically non-magnetic, to eliminate the loss of the bearing structure to the magnetic field. In order to control the influence of cavity resonance on the sound, an inner cavity made of brass is installed on the back of the unit, and airflow exchange is carried out between the air holes in seven different positions and the diaphragm. This technology brings excellent low-frequency response and performance as well as high-frequency response and details.
